JEXI

Print Friendly

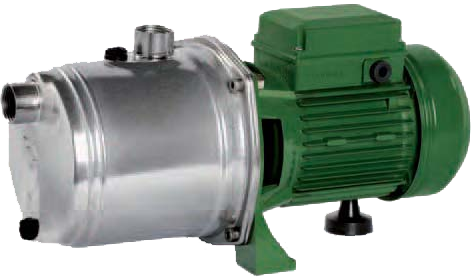

Stainless Steel Self-Priming Electric Pumps

The self-priming centrifugal electric pumps series JEXI have been designed to pump clean water from wells, even if mixed with gas

  • Maximum suction up to 8-9 m
  • Liquid temperature not higher than 35 °C for domestic use (CEI EN 60335-2-41) or 60 °C for other use, while the ambient temperature must not be higher than 40 °C
  • Flow rate up to ~ 4 m3/h
  • Heads up to ~ 50 m

Technical Features

  • Pump body: stainless steel Aisi 304
  • Motor bracket in die casting aluminium  UNI 5076
  • Diffuser, Nozzle & Venturi tube: Techno-polymer
  • Impeller: stainless steel Aisi 304 (Techno-polymer JEXI 65-85-105)
  • Pump shaft: stainless steel Aisi 304 (Aisi 420F JEXI 65-85-105)
  • Mechanical seal: carbon-ceramics

Motor

The control motors are asynchronous, squirrel cage-type, closed, with external ventilation

  • Incorporated motor protection and capacitor always on, for single-phase models
  • The motor protection for three-phase models must be installed by the customer. Equipment compliant with current standards should be used
  • Class of insulation:F-service:S1-Degree of protection: IP 44
  • Terminal board protection: IP 54
