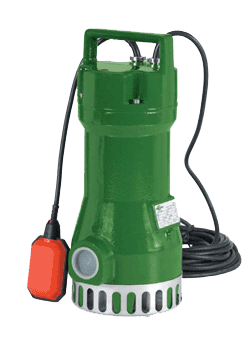

Submersible Draining Electric Pumps

The submersible draining electric pump with open impeller series SA have been designed for pumping clear or slightly dirty liquids, nonexplosive or chemically aggressive for the pump’s materials, either containing suspended solids max Ø 10 mm, without abrasives parts.

Temperatures not higher 35 °C (CEI EN 60335-2-41).

Technical Features

  • Motor body and cover with handle: cast iron G20 with anticorrosive coating
  • Pump body: cast iron G20 with anti-corrosive coating
  • Impeller: cast iron G20 with anti-corrosive coating
  • Base filter: stainless steel Aisi 304
  • Pump shaft: stainless steel Aisi 304
  • Pump’s side seal: mechanical carbon-ceramics
  • Motor’s side seal: lip ring in NBR
  • Feeding cable: 10 m H07RN-F

Motor

  • Two poles induction rewindable motor with protection IP 68, class F insulation.
  • Single-phase feeding with incorporated motor protector and capacitor permanently connected.
  • Three-phase feeding with compulsory protection to be provided by the user.
  • Continuous duty if completely submerged

On Request:

  • Single-phase automatic version with float switch (AUT).
  • Brass hose connector with curve 2 nipples.
