SLX 6

Print Friendly

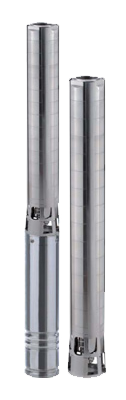

Submersible Pumps For 6″ Wells In Stainless Steel

The 6″ submersible pumps of the series “SLX6″ have been designed to be installed in Ø 6-8” wells (150/200 mm) and to pump clean water or water with the slight presence of sand (150 g/m?max.), without suspended solids.

  • Temperatures not higher than 35 °C for domestic use (CEI EN60335-2-41) or 40 °C for other use, while the ambient temperature must not be higher than 40 °C.
  • Thanks to the particular design, the non-return valve, integrated in the upper head preserves the impellers and diffuser from the weight of the column and eventual water hammers.

Technical Features

  • Upper head of the pump: in precision-cast  stainless steel Aisi 304
  • Suction flange: in precision-cast  stainless steel Aisi 304
  • Check valve: in stainless steel Aisi 304
  • Pump shaft: in stainless steel Aisi 304
  • Diffusers: in precision-cast  stainless steel Aisi 304
  • Impellers: in precision-cast  stainless steel Aisi 304
